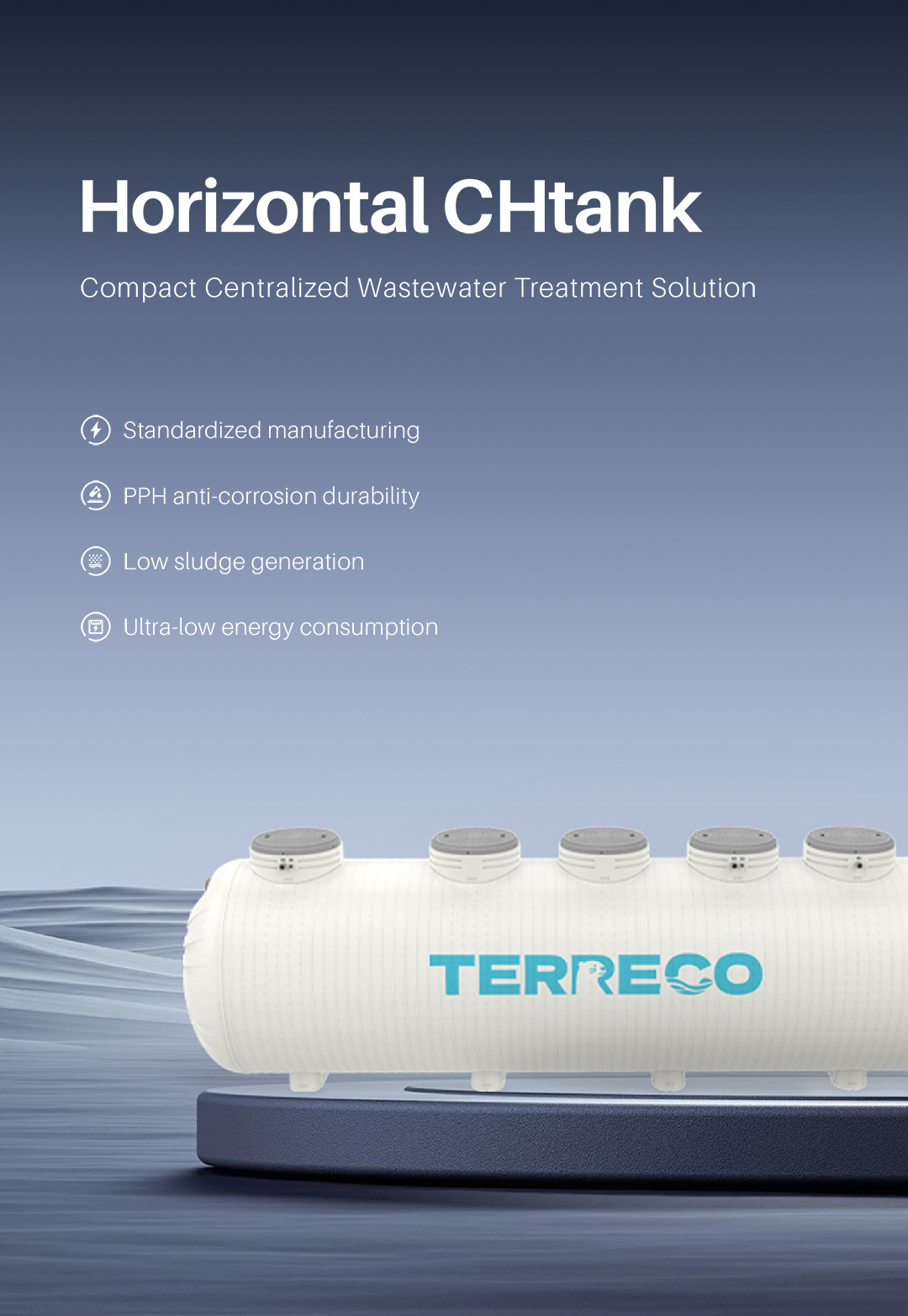

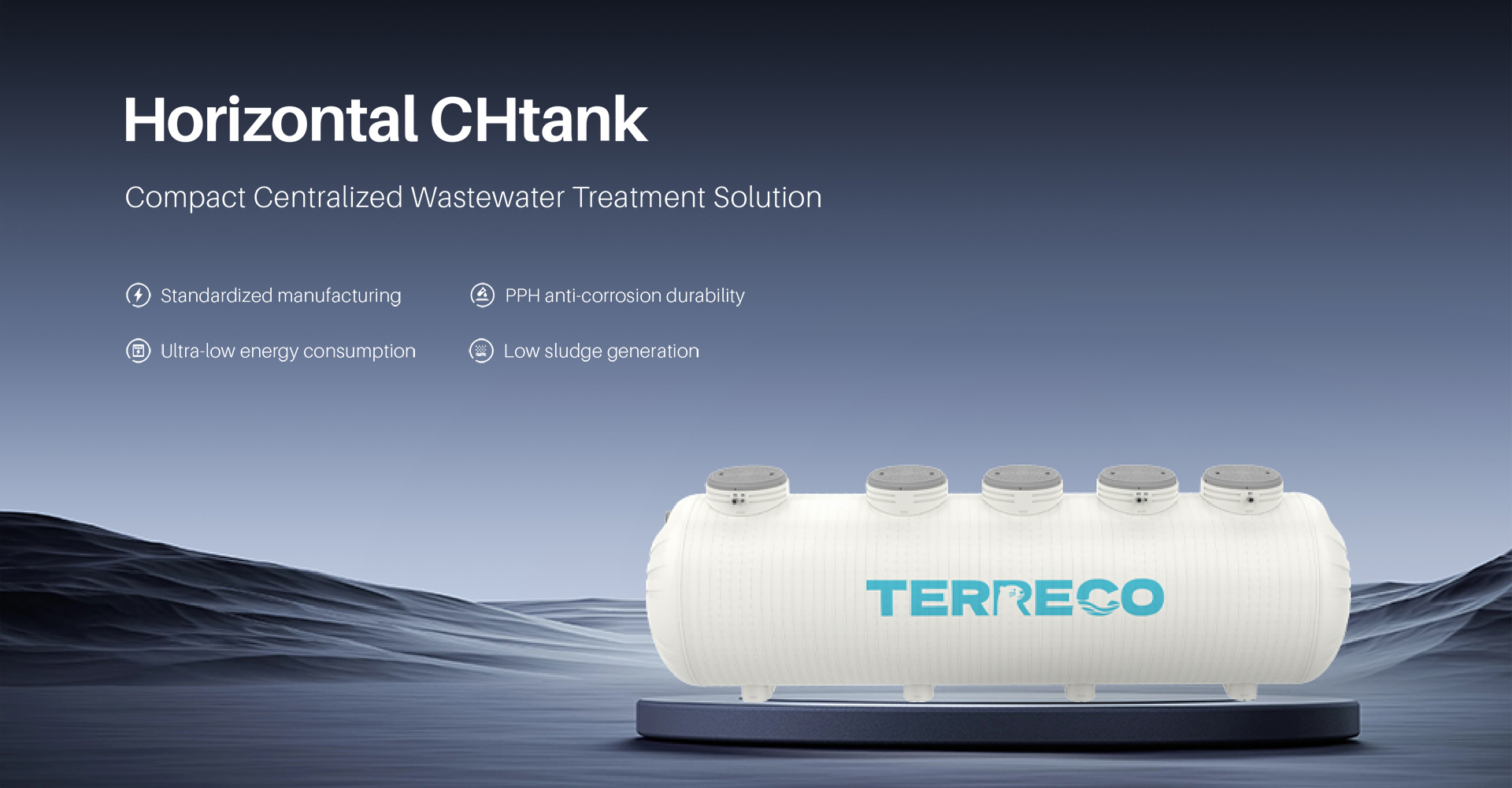

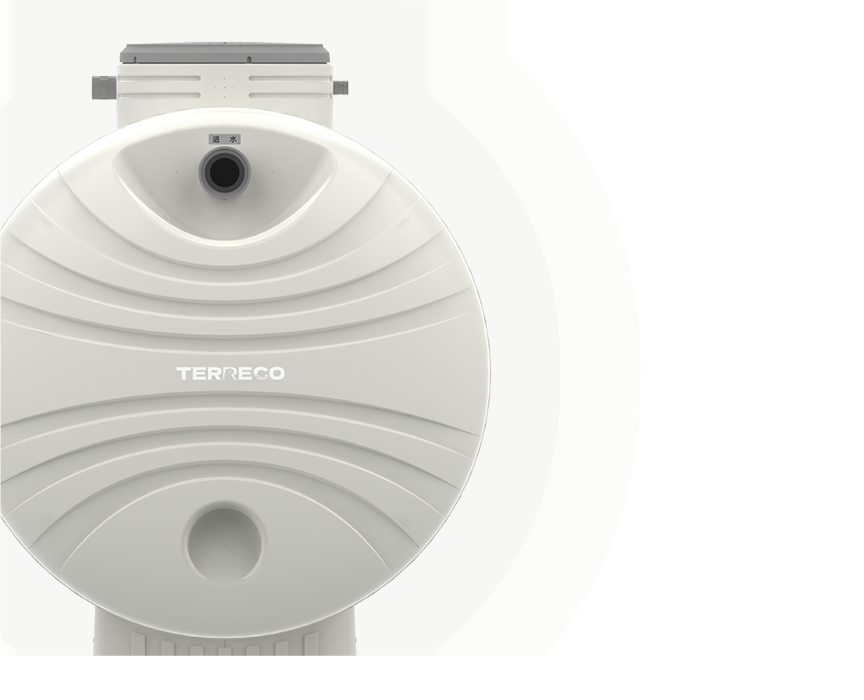

What is the Horizontal CHtank?

The Horizontal CHtank series products are compact, integrated wastewater treatment solutions designed for villages, guesthouses, tourist destinations, and similar applications. Utilizing proprietary Multistage A/O or SND processes, they efficiently treat domestic wastewater from kitchens, showers, and toilets, ensuring stable and compliant effluent quality.

Horizontal Tank

Product Specifications

Treatment Capacity

5 m³/d (1,320 gal/d)

Dimensions(m)

3.2×2.0×2.3

Treatment Process

SND

Effluent Standard

CODcr≤60,NH₃-N≤8(15)
TP≤2,SS≤20

Main Material

PP(PPH)

Installation Method

Underground

Transportation Mode

20GP Container

Design Influent and Effluent Control Targets

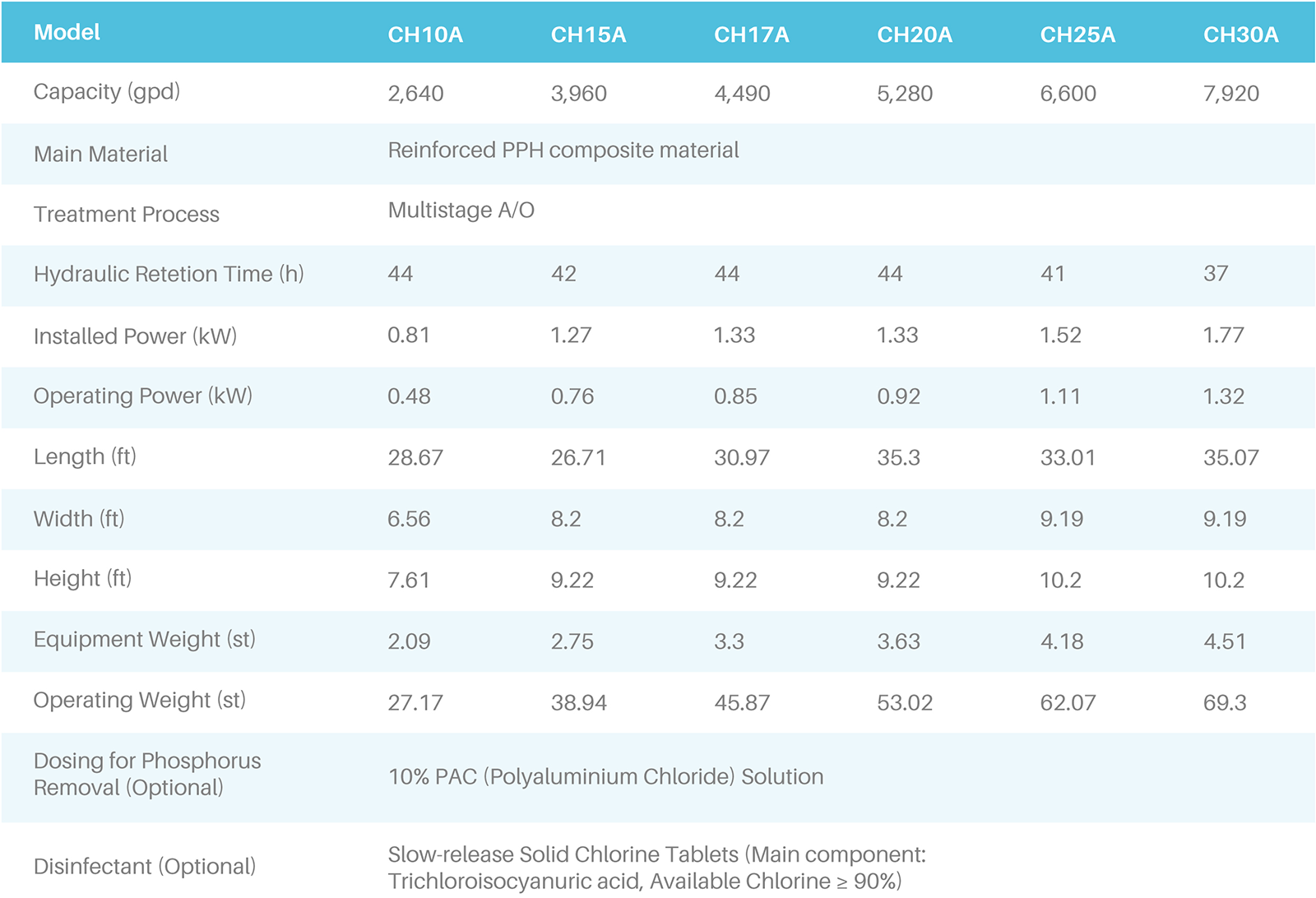

Model Specifications Table for Reference

Superior Technical Support

The multistage A/O process exhibits strong biological nitrogen removal capability. The anoxic zone is filled with anaerobic bacteria-enriched progressive anaerobic balls, achieving removal of organic matter and total nitrogen through denitrification while simultaneously realizing sludge reduction. The effluent from the anoxic zone enters the multistage aerobic zone, which is filled with biomass-enriched sponge media, enabling the degradation of residual organic matter and nitrification of ammonia nitrogen through nitrification.

Diverse Application Scenarios

  • Villages & Townships Villages & Townships

    Villages & Townships

    The Horizontal CHtank adopts the multistage A/O or SND process, delivering superior treatment performance within a compact footprint—an ideal solution for rural environmental improvement.
  • Villas & Resorts Villas & Resorts

    Villas & Resorts

    The Horizontal CHtank is designed for luxury villas, guesthouses, and resorts, combining quiet operation, elegant design, and harmony with the natural environment.
  • Scenic Areas & Campsites Scenic Areas & Campsites

    Scenic Areas & Campsites

    The Horizontal CHtank provides low-impact, high-efficiency solutions for environmentally sensitive sites such as nature reserves and campsites.
  • Small Communities & Independent Facilities Small Communities & Independent Facilities

    Small Communities & Independent Facilities

    The Horizontal CHtank delivers stable and efficient domestic wastewater treatment for small communities, schools, and factory dormitories.

Customize Your Solution

Our technical team is always ready to provide customized design and professional support.
