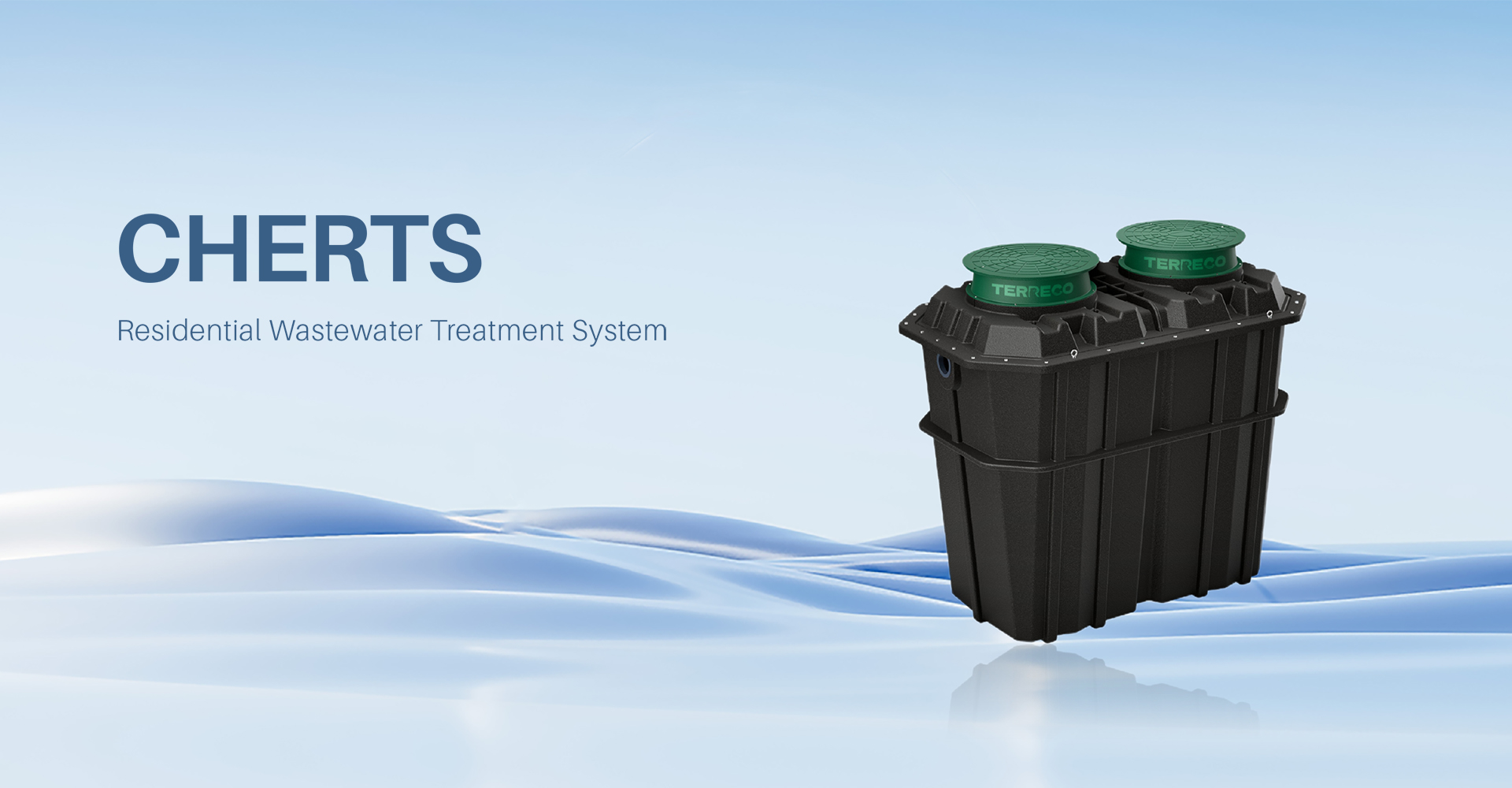

Residential Wastewater Treatment System

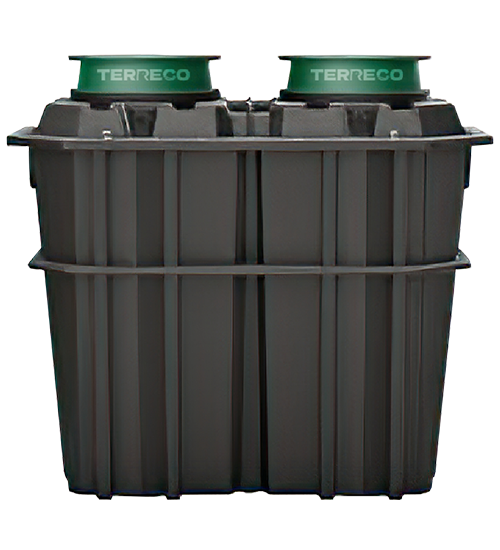

CHERTS is a compact, prefabricated biological wastewater treatment system designed specifically for installation after existing septic tanks to provide advanced secondary treatment and enable safe water reuse. It is an ideal solution for homes and small communities without centralized sewer systems, particularly in areas where groundwater contamination is a concern or where water resource recovery is desired.
By integrating CHERTS downstream of a conventional septic system, property owners can upgrade from basic primary treatment to a complete nutrient-removal solution - achieving effluent quality suitable for irrigation, landscaping, toilet flushing, or groundwater recharge.
Product Highlights
Perfect Retrofit Solution
Easily connects after existing septic tanks to upgrade treatment performance without replacing the original system.
Groundwater Protection
Reduces BOD, nitrogen, and suspended solids to prevent leaching and protect aquifers from nutrient pollution - a major concern in rural and suburban areas.
Enables Water Reuse
Produces high-quality effluent suitable for non-potable reuse applications, helping reduce freshwater demand.
Compact & Efficient
Treatment capacity options from 500–1500 gal/day (2–5.7 m3/day) per unit, ideal for single-family homes, vacation properties, or small communities.
Low O&M & Smart Monitoring
Equipped with integrated aeration, automated control, and remote monitoring for low-maintenance operation (sediment removal ~every 2 years).Detailed Specifications
Product Specifications
500gal/d
2.32×1.42×2.00
A²/O
BOD₅≤25,TSS≤30,TN removal rate≥50%,PH6~9
PE
Underground
0.65t
40HQ LCL Consolidation
Treatment Performance
CHERTS units comply with NSF/ANSI 40 & 245 standards for residential wastewater treatment and nutrient reduction, ensuring regulatory compliance in most U.S. states and local jurisdictions.
Effluent Quality
BOD₅ (mg/L)
≤25
TSS (mg/L)
≤30
TN (mg/L)
≤10

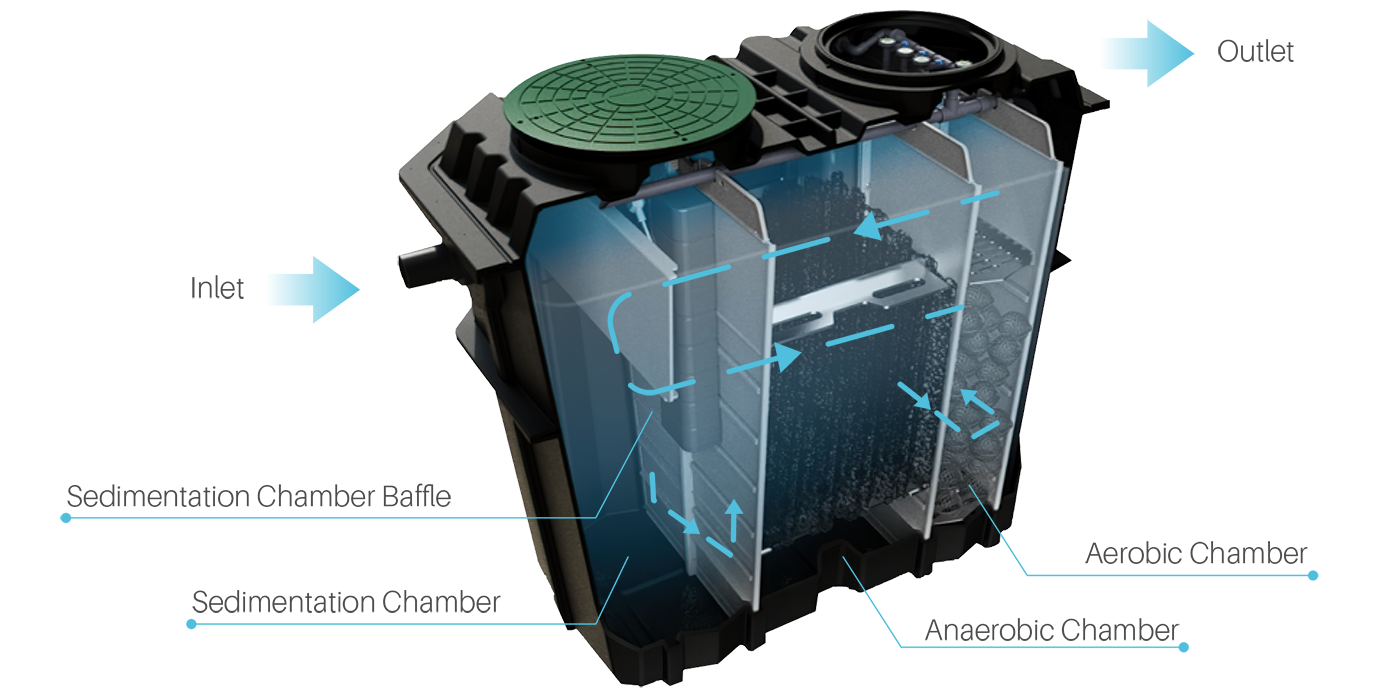

Section View
Comparison Chart
Application Scenarios
Existing Septic System Upgrades
Enhances treatment performance for properties relying on aging or underperforming septic tanks.
Groundwater Sensitive Areas
Provides advanced nutrient removal in locations with shallow aquifers or drinking water wells.
Water-Scarce Regions
Enables treated effluent reuse for irrigation, toilet flushing, or landscape water features.
Seasonal or Rural Properties
Offers reliable treatment for vacation homes, cabins, and small communities without centralized sewer service.Customize Your Solution
Our technical team is always ready to provide customized design and professional support.customerservice@terreco.net
